Honda Odyssey Extension Harnesses HA8025–HA8033 & HA8041–HA8043
Vantage Mobility
Page 1
Table of Contents
HA8025 – A-Pillar 8-Pin .......................... 3
HA8026 – Passenger Schlepp Extension Harness (22-Pin) .......................... 4 HA8027 – Passenger Schlepp Harness (8-Pin) .......................... 5
HA8028 – Impact Sensor Harness (4-Pin) .......................... 6
HA8029 – Center Extension Harness (20-Pin) .......................... 7
HA8030 – Center Extension Harness (24-Pin) .......................... 8
HA8031 – Extension, Passenger A-Pillar (5-Pin) .......................... 9
HA8032 – Extension, Passenger A-Pillar (25-Pin) .......................... 10
HA8033 – Center Extension Harness (34-Pin) .......................... 11
HA8041 – Center Extension Harness (18-Pin, Rev A) .......................... 12 HA8042 – Center Extension Harness (18-Pin, Rev B) .......................... 13 HA8043 – Passenger A-Pillar Harness (22-Pin) .......................... 14
Page 2

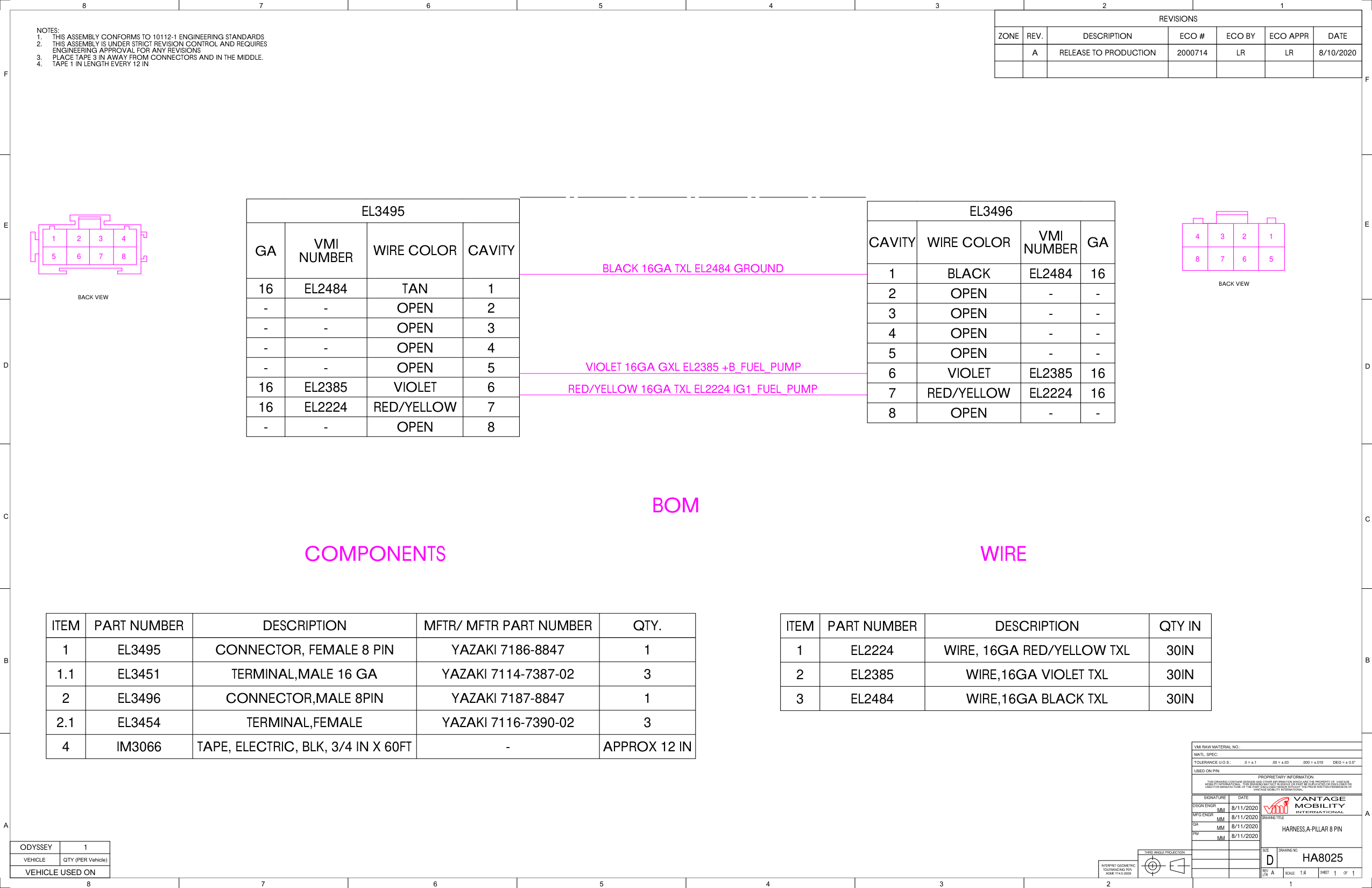

Harness: HA8025 – A-Pillar 8-Pin
Drawing No: HA8025
Vehicle: Odyssey
Date: 08/11/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Item | Part Number | Description | Manufacturer / Part Number | Qty |
1 | EL3495 | Connector, Female 8 Pin | Yazaki 7186-8847 | 1 |
1.1 | EL3451 | Terminal, Male 16 GA | Yazaki 7114-7387-02 | 3 |
2 | EL3496 | Connector, Male 8 Pin | Yazaki 7187-8847 | 1 |
2.1 | EL3454 | Terminal, Female | Yazaki 7116-7390-02 | 3 |
4 | IM3066 | Tape, Electric, BLK, 3/4 in x 60FT | - | 12 in |
Wire BOM:
Page 3
Item | Part Number | Description | Length |
1 | EL2224 | Wire, 16GA RED/YELLOW TXL | 30 in |
2 | EL2385 | Wire, 16GA VIOLET TXL | 30 in |
3 | EL2484 | Wire, 16GA BLACK TXL | 30 in |
Page 4

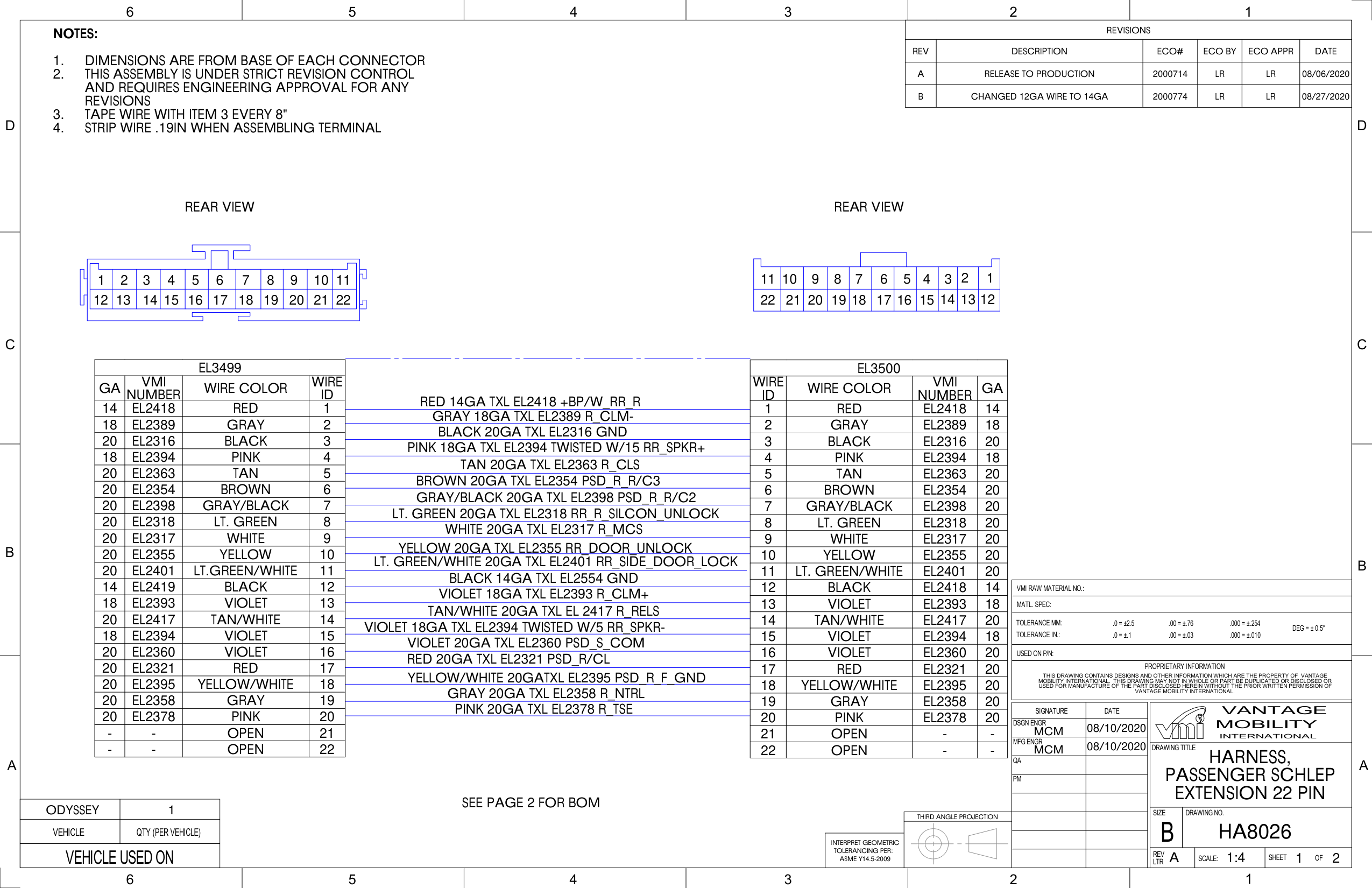

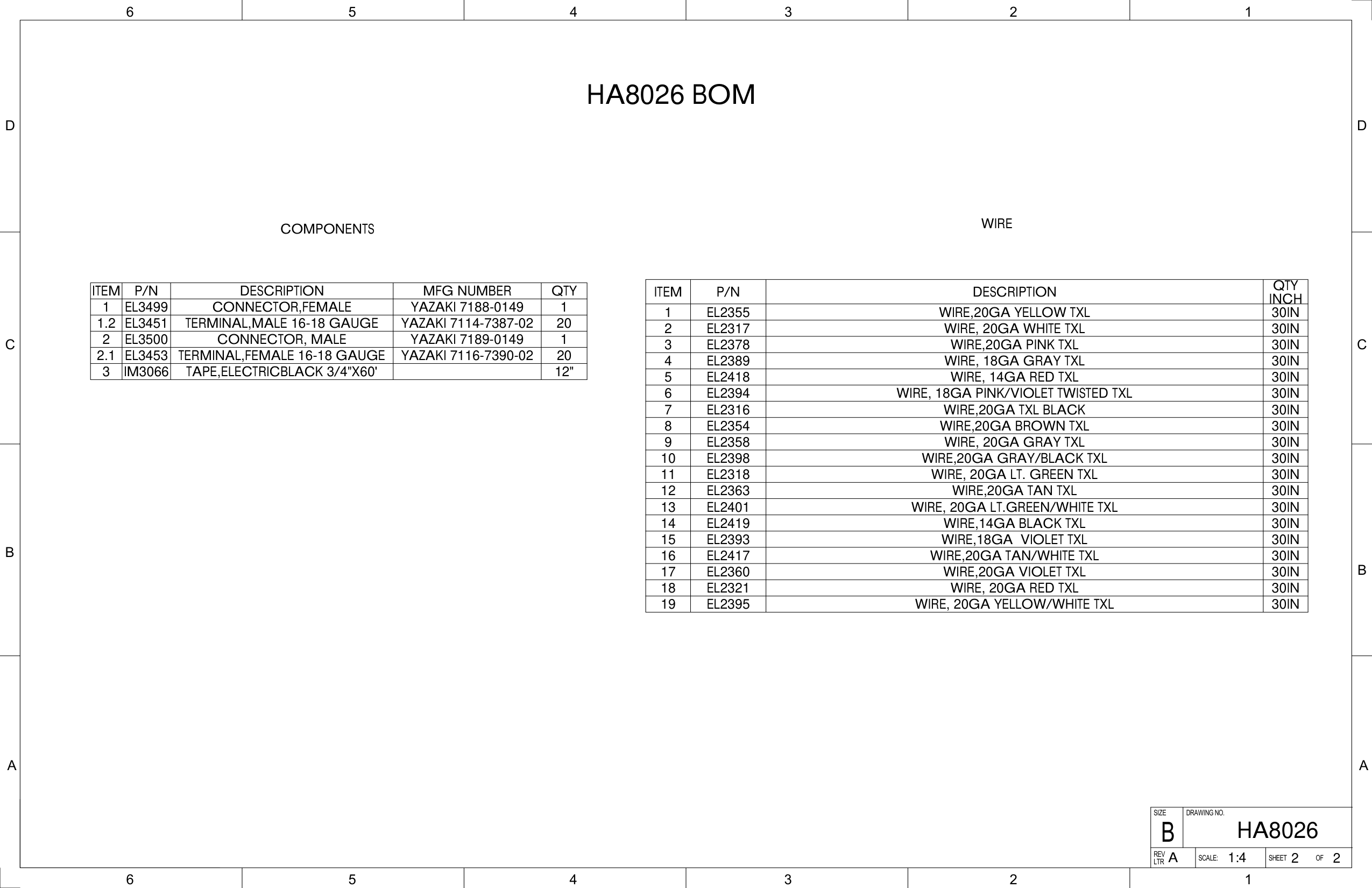

Harness: HA8026 – Passenger Schlepp Extension Harness (22-Pin)
Drawing No: HA8026
Vehicle: Odyssey
Date: 08/10/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 5

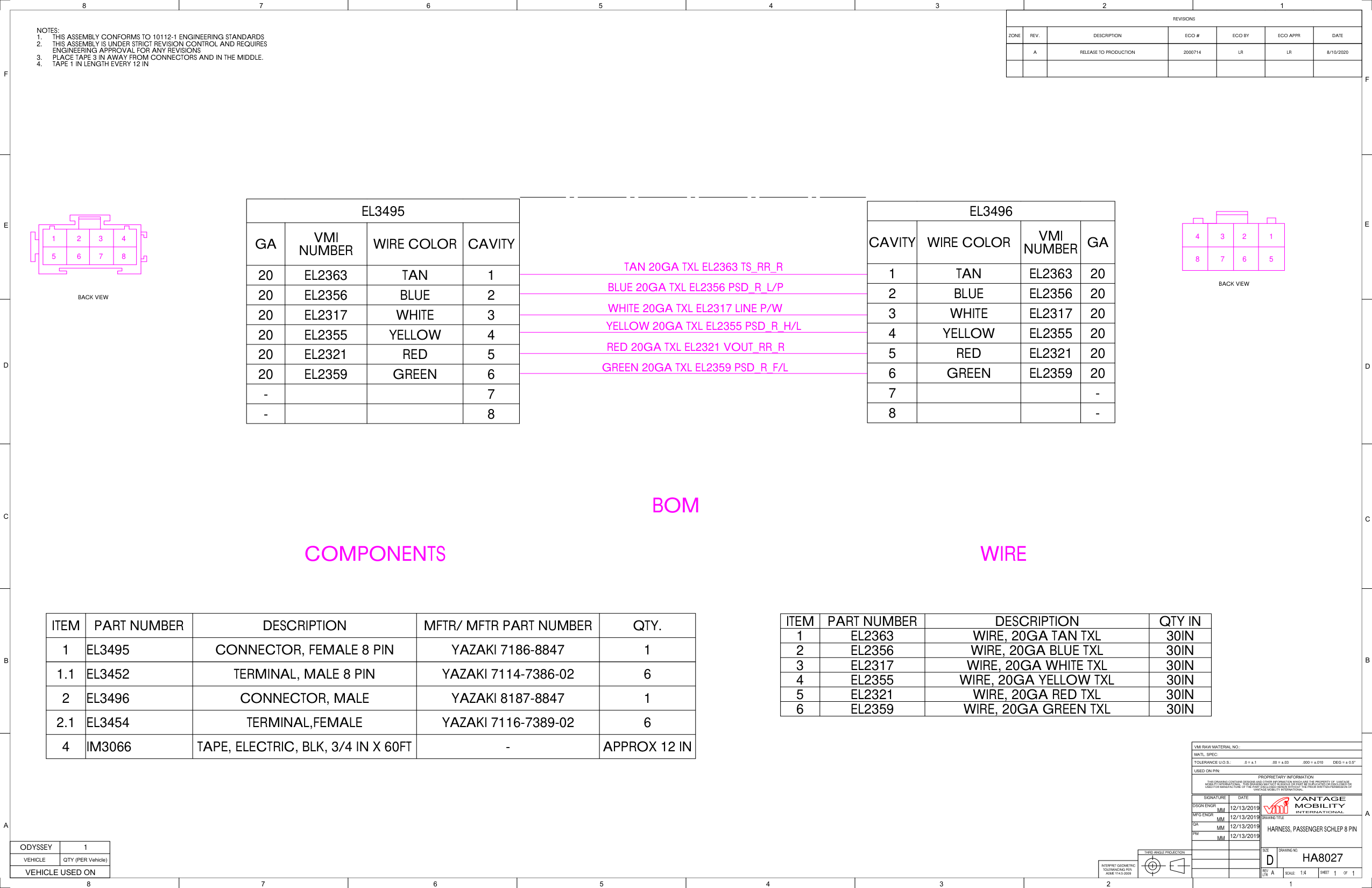

Harness: HA8027 – Passenger Schlepp Harness (8-Pin)
Drawing No: HA8027
Vehicle: Odyssey
Date: 12/13/2019
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 6

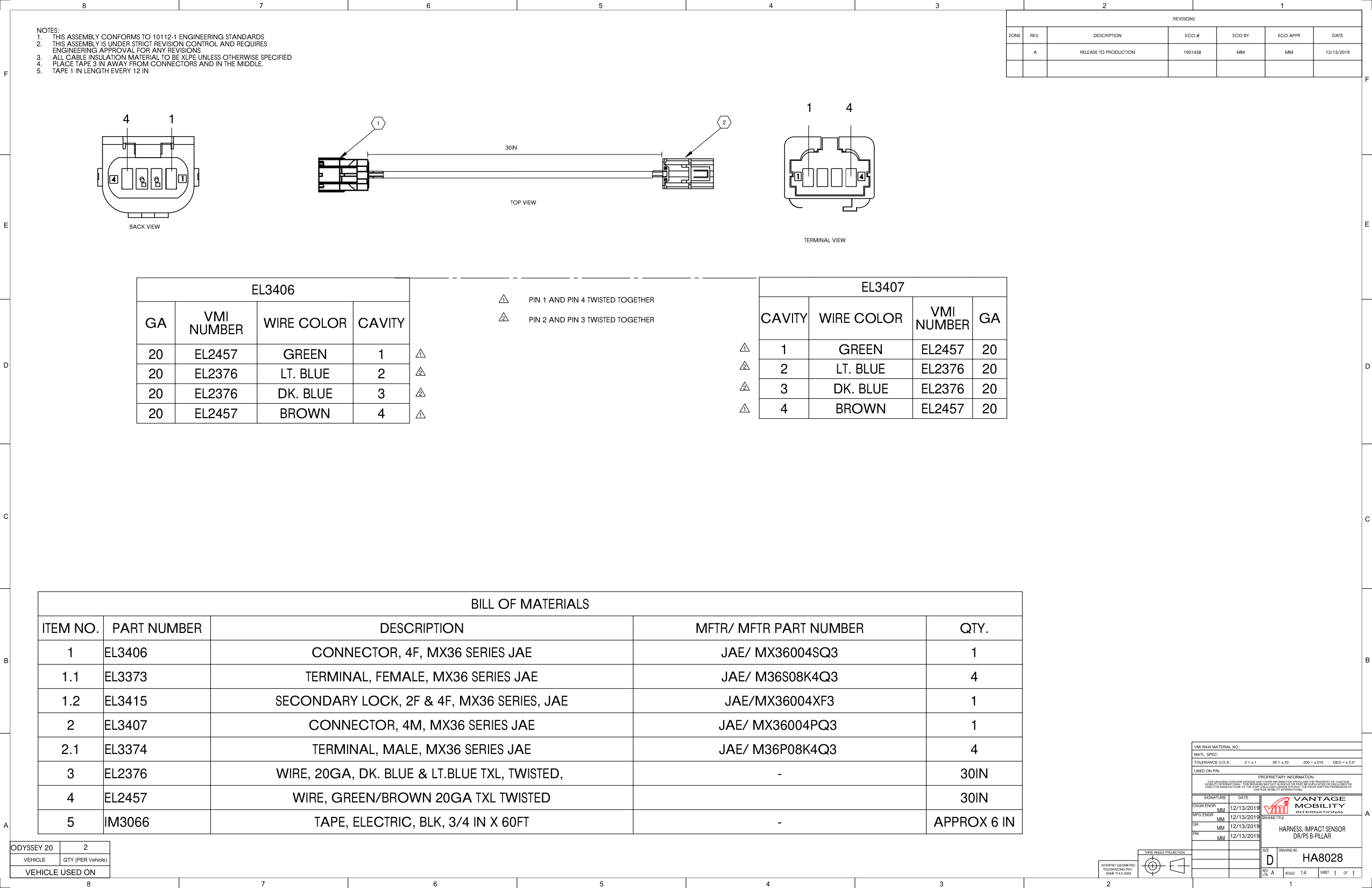

Harness: HA8028 – Impact Sensor Harness (4-Pin)
Drawing No: HA8028
Vehicle: Odyssey
Date: 12/13/2019
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 7

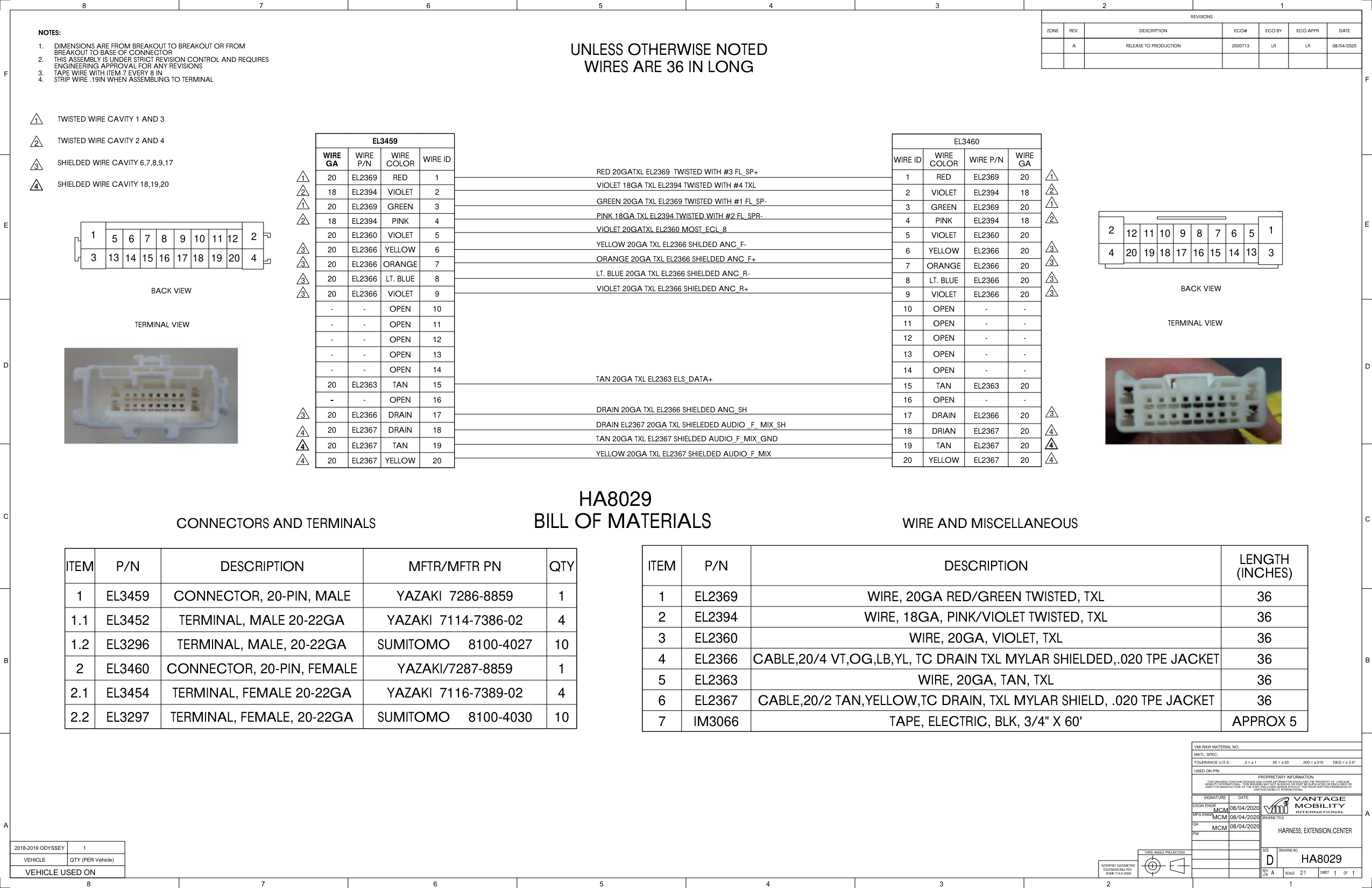

Harness: HA8029 – Center Extension Harness (20-Pin)
Drawing No: HA8029
Vehicle: Odyssey
Date: 08/04/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 8

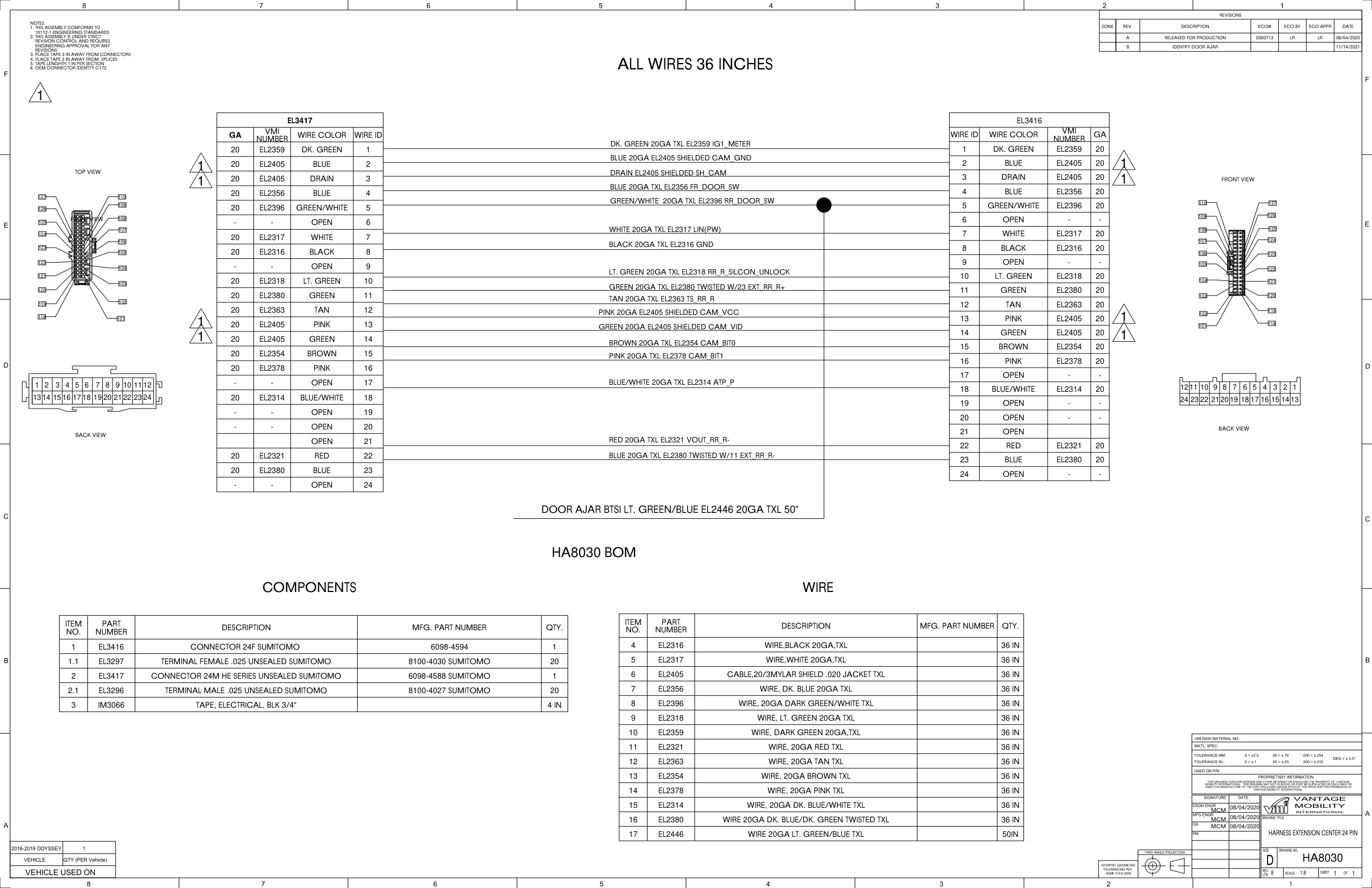

Harness: HA8030 – Center Extension Harness (24-Pin)
Drawing No: HA8030
Vehicle: Odyssey
Date: 08/04/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 9

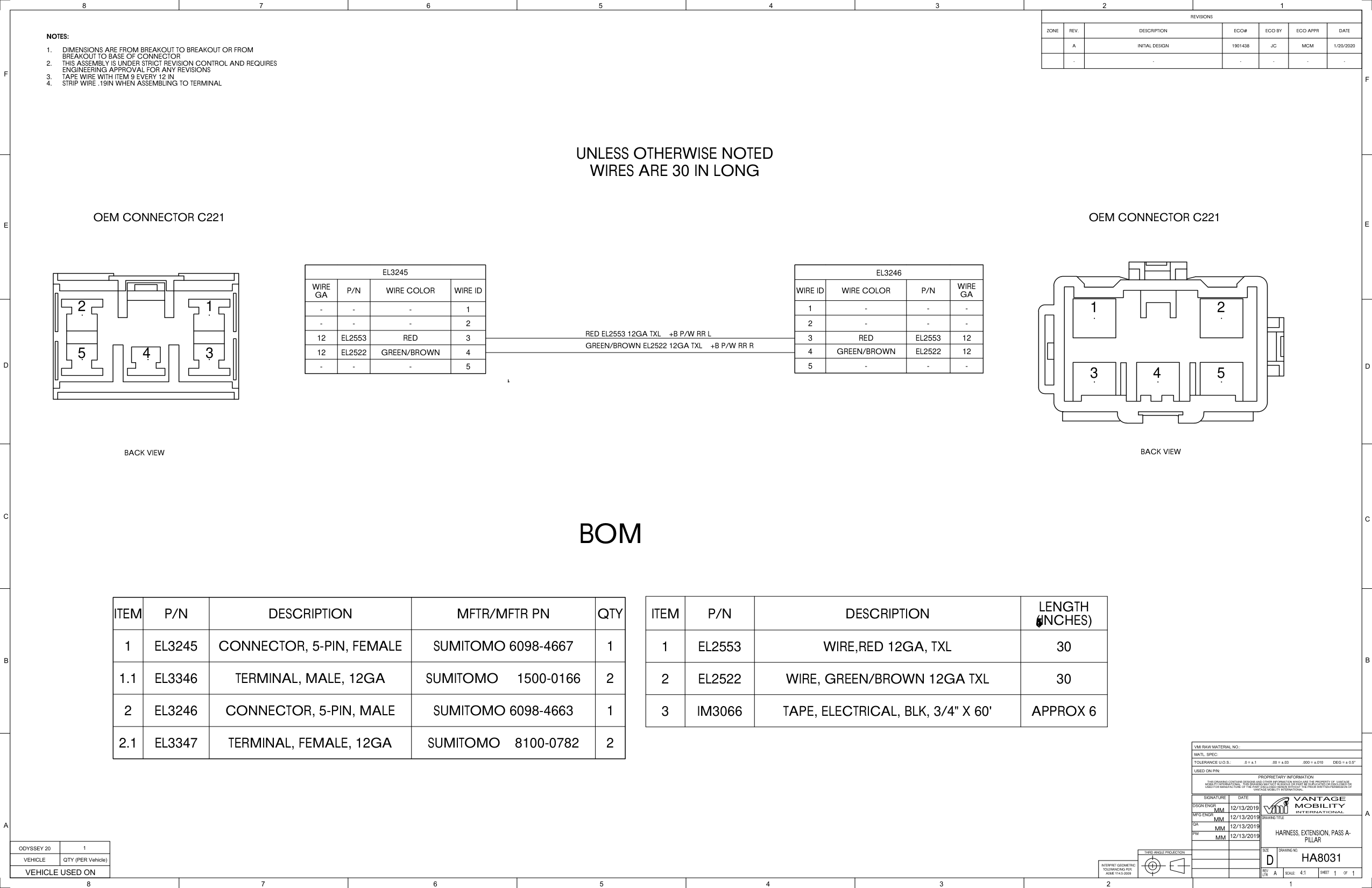

Harness: HA8031 – Extension, Passenger A-Pillar (5-Pin)
Drawing No: HA8031
Vehicle: Odyssey
Date: 12/13/2019
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 10

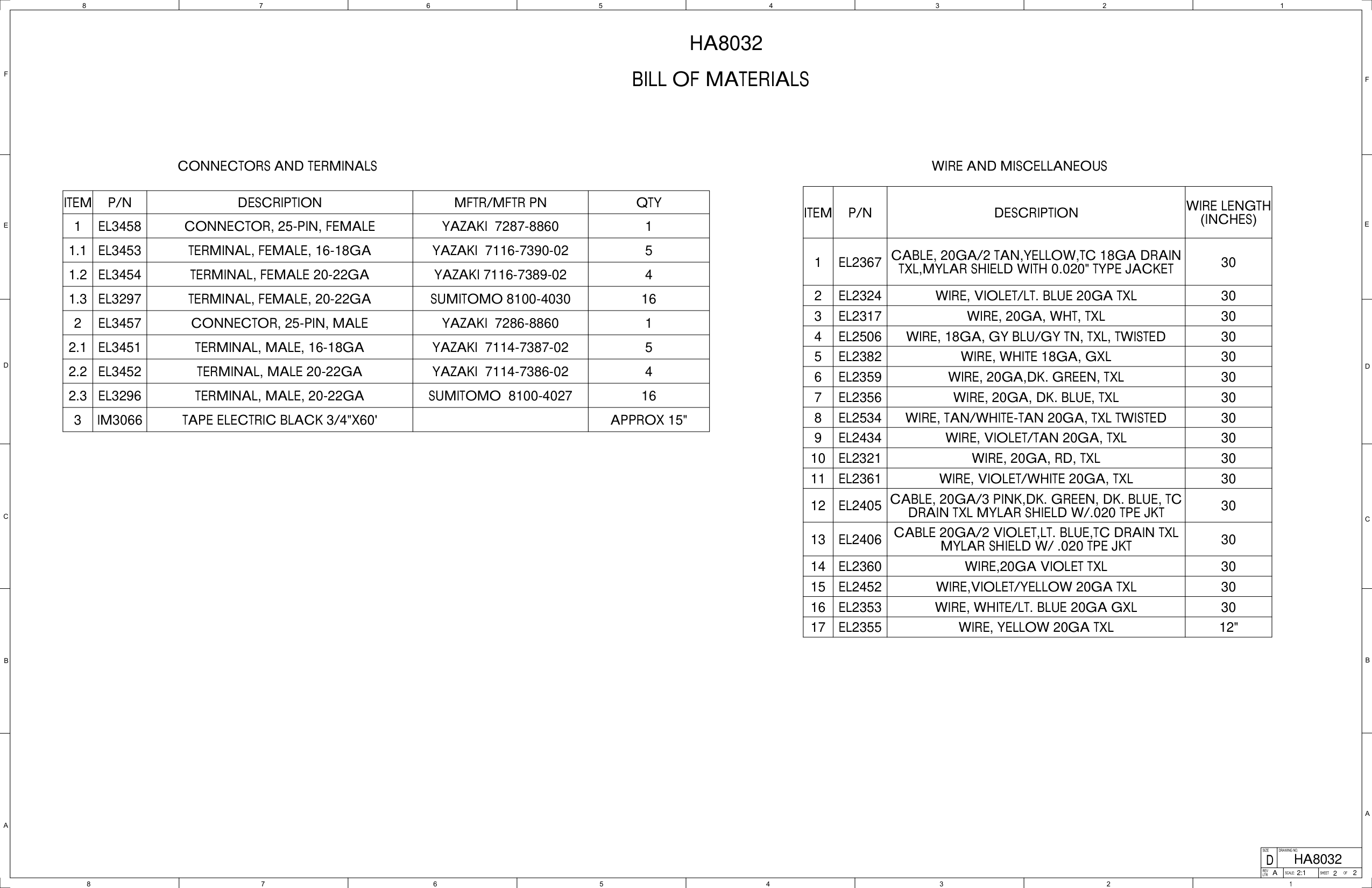

Harness: HA8032 – Extension, Passenger A-Pillar (25-Pin)
Drawing No: HA8032
Vehicle: Odyssey
Date: 12/10/2019
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 11

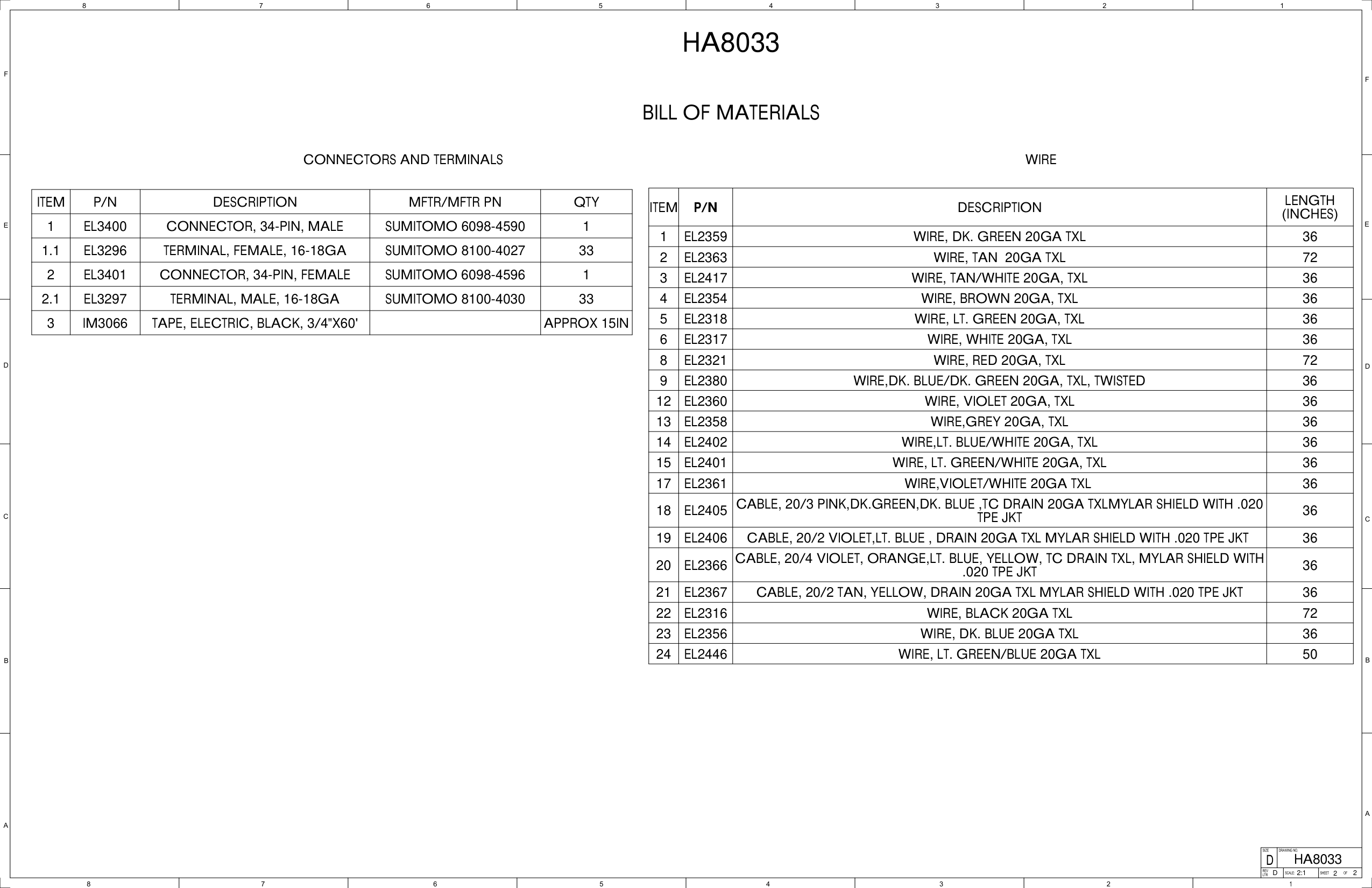

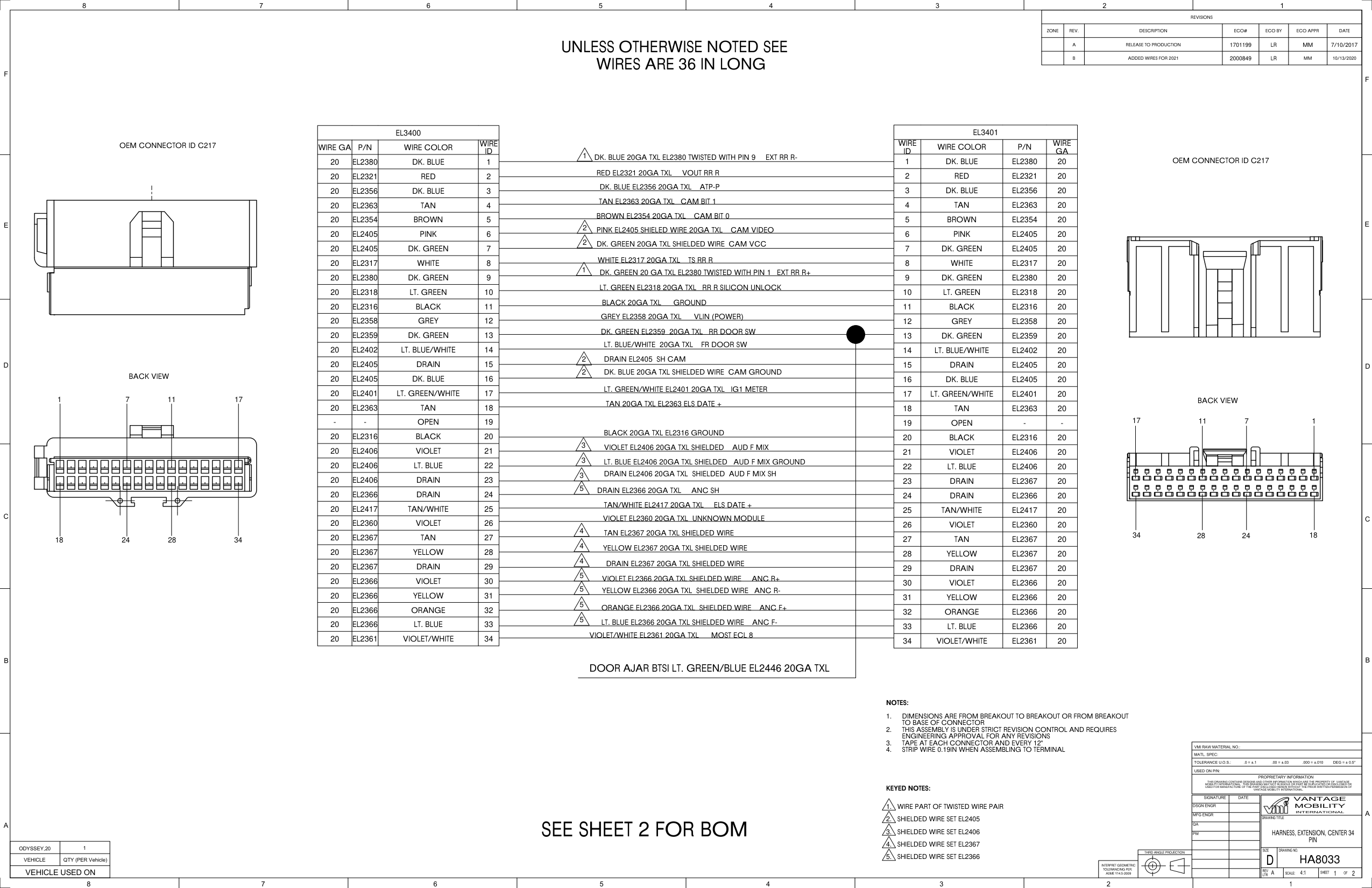

Harness: HA8033 – Center Extension Harness (34-Pin)
Drawing No: HA8033
Vehicle: Odyssey
Date: 07/10/2017
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 12
Harness: HA8041 – Center Extension Harness (18-Pin, Rev A)
Drawing No: HA8041
Vehicle: Odyssey
Date: 08/05/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 13
Harness: HA8042 – Center Extension Harness (18-Pin, Rev B)
Drawing No: HA8042
Vehicle: Odyssey
Date: 10/13/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 14
Harness: HA8043 – Passenger A-Pillar Harness (22-Pin)
Drawing No: HA8043
Vehicle: Odyssey
Date: 08/06/2020
Assembly Notes:
• Refer to original engineering drawing for specific notes and tolerances.
• This harness is under strict revision control and must not be altered without approval.
Component BOM:
Refer to schematic for part numbers and quantities used.
Page 15
